Laser Autofocus Systems

The Laser Autofocus Systems combines advanced optics and intelligent in-built micro processing to provide a real time focus system for infinity corrected optical systems. The system is an integrated unit comprising of an IR laser diode, precision optical components, detector and signal processing electronics with on-board micro controller. Outputs directly drive a step motor or provides output for servo or Piezo drives.

With the ability to autofocus on different interfaces including slides, glass bottom dishes, flow chambers and many more.

Product Selection

Model	Image	Size mm	Weight kg	Laser wavelength nm	Laser optical output power	Update rate	Dichroic

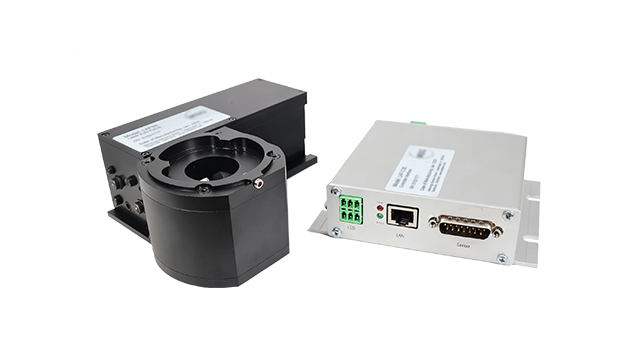

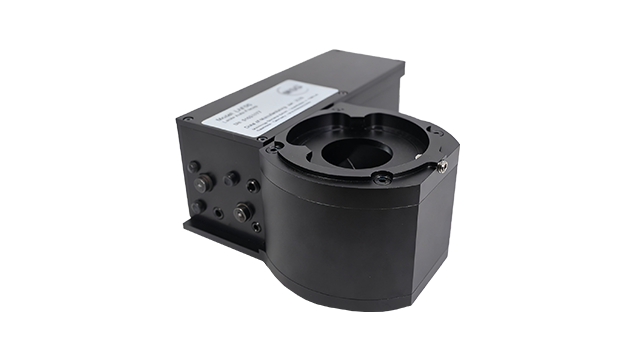

LAF5S		126.5 × 52 × 47	0.85	660 — 670 785 、850 、1310	＜2 mW	4 kHz	可选

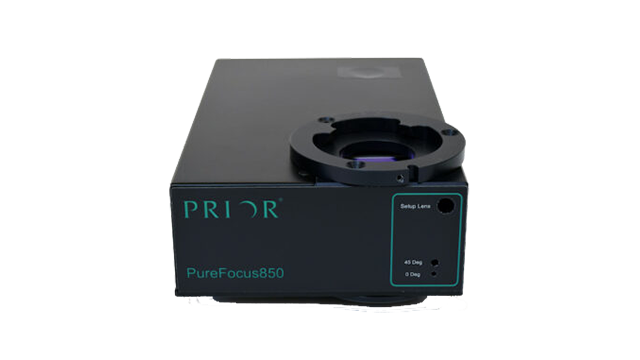

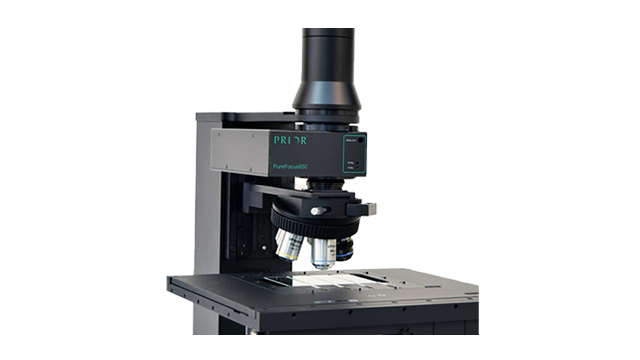

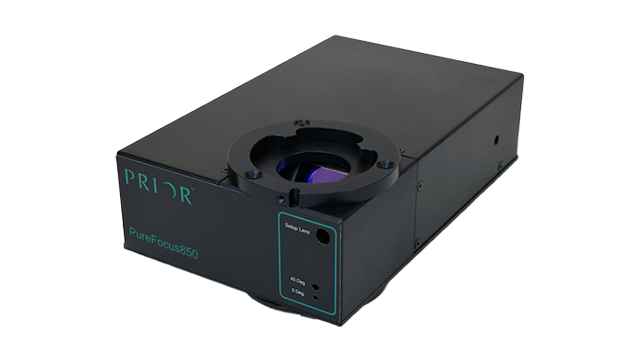

PF850		192 × 119 × 50.5	1.5	850	＜0.77 mW Class1	1 ms	50 %截止波长800 nm 直径32 mm
